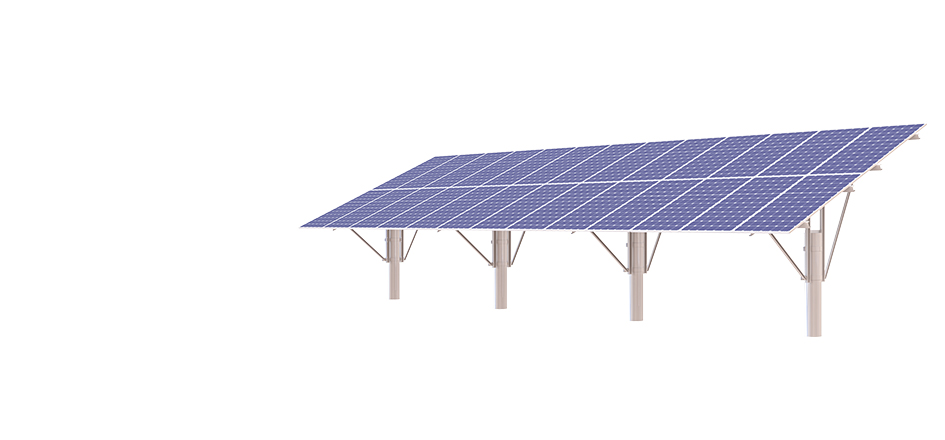

Single column fixed photovoltaic bracket system
VGPCF13 series support system is the most advanced ground support system, adhering to the humanized design concept, unique "zero welding, strong compatibility" characteristics.
Product parameters
Product features
System nameVGPCF13
Ground basecement foundation, screw pile, H beam, C beam
Inclined beamC beam, hot dip galvanized
BeamC beam, hot dip galvanized
Basic wind load0.75kN/m2
Basic snow load0.45kN/m2
Module layouttwo rows of vertical, three rows of horizontal, four rows of horizontal
Design standardGB50017 《Code for Design of Steel Structures》
GB50009 《Code for Loads of Building Structures》
DGJ32/J87 《Technical Specification for Integrated Application of Solar Photovoltaic and Building》
1. Suitable for large-scale ground power station photovoltaic projects such as water and desert applications 2. High installation efficiency 3. Less foundations
