Flexible PV Mounting Structure System

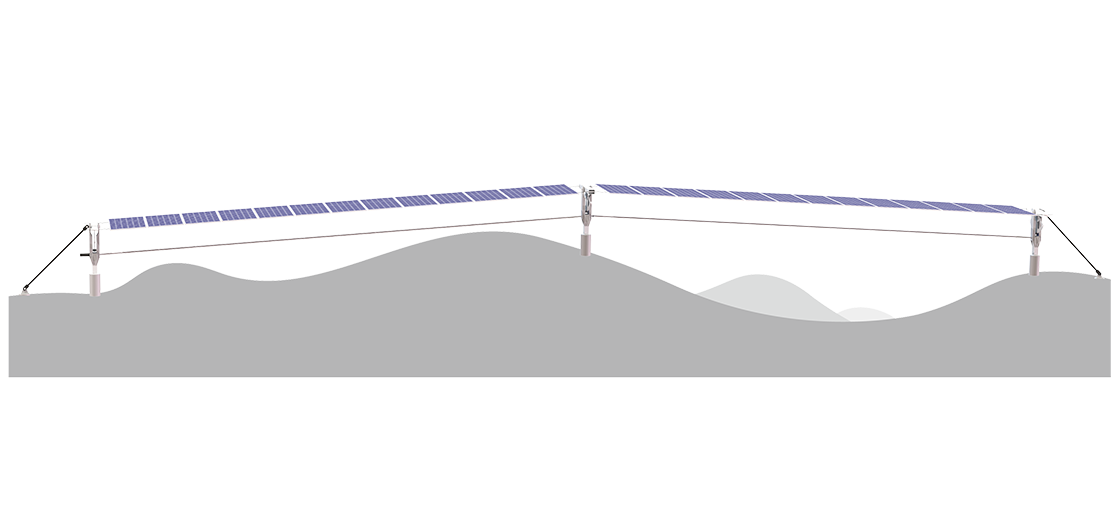

The flexible PV mounting structure system adopts suspension cable as the main load-bearing structure, which has advantages such as good terrain adaptability, super large span, continuous arbitrary multi-span arrangement and small number of pile foundations. It also has the characteristics of free of outdoor maintenance and harsh weather resistance. It can make full use of complex terrain, fit for more application site and increase the installed capacity per unit area, providing customers with products adapted with various site and solutions.
Product parameters
Product features
  • Driving mode Chain Wheel+Reducer
  • Tracking range ±60°
  • Structure type Elastic/Flexible structure
  • Allowable wind load 47m/s
  • Wind protection mode 18m/s
  • Array arrangement Multi-array connected on one mounting structure
  • Module layout arrangement 1PC Portrait
  • Tracking mode Astronomical Algorithms/Active tracking/Backtracking/AI
  • Tracking accuracy ≤1°
  • Control mode MCU closed-loop feedback control
  • Control accuracy ≤0.3°
  • Power supply mode String connected with battery backup/Customer provided AC circuit
  • Power supply voltage 1500V DC/220V AC
  • Backup battery Lithium battery
  • Level of protection ≥IP65
  • Communication mode Zigbeewireless/Modbus
  • Monitoring device SCADA(optional)
  • System consumption ~20kWh/set/year
  • Protected mode condition Gale/Snowfall/Hail
  • Standard and Certification 《Specification for structural steel buildings》 AISC 360 《Minimum design loads for buildings and other structures》 ASCE 7 《Technical requirement for tracking system of PV power station》GB/T29320 《Technical specification for cable structures》 JGJ257-2012 《CPP wind tunnel tests and wind load analysis》 TUV Certification China general certification
    1、Good terrain adaptability, super large span, tall clear height;
    2、Flexible layout, convenient construction;
    3、Intelligent automatic operation, Automatic protection against harsh weather condition.
